# 6.1 - Well Details

The Well Details page allows the user to create their own custom summary page for the selected well. The page is made up of cards, each of which convey a different piece of data about the well. The user can add, remove, and rearrange these cards so that all the desired information can be monitored from a single page.

![Figure 1: Well Details page](/files/hCp8RqZG4gVuvlpXWewZ)

Cards can be moved around the window by left clicking and dragging the title of the card. The card can be resized by left clicking and dragging the bottom right corner of the card. The card can be closed by clicking on the icon in the top right of the card. Closed cards can be re-added using the Well Details edit menu.

<img src="/files/hA0XKa0kDWUpfgs2GrSy" alt="Figure 2: Well Details card controls" width="505">

Click on the \<img src="/files/hbIv4v648uBBndTTmFZ3" alt="A blue circle with a white pencil in it

Description automatically generated" data-size="line"> icon in the bottom right of the page to open the Well Details edit menu, with the following functions:

<img src="/files/mpfT0QbyzIomKNTwXsz2" alt="" data-size="line">**Select Cards:** Opens the select cards dialog box. The user can toggle on/off the desired cards and then save their selection by clicking Apply.

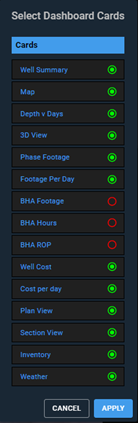

<figure><img src="/files/ByX7XawL0M263NGxU7Ld" alt="" width="104"><figcaption><p>Figure 3: Select cards dialog</p></figcaption></figure>

![](/files/3IJkYE5KLGB1LWyzryTF)**Reset Layout:** Resets the Well Details page to the default layout.

![](/files/kBFIBPgkfzV6Z0SbwPaZ)**Refresh:** Refreshes all data on the Well Details page.


---
