11.5.5 - Settings Ribbon

The Settings ribbon contains some extra options for customising the Daily Reports window.

Figure 265: DDR Settings menu

Columns: This option opens a dialog where the user can select which columns will be displayed and their order.

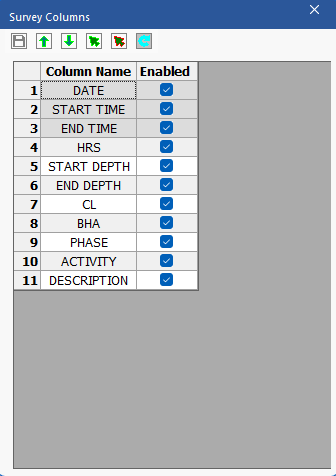

Figure 266: DDR Columns Dialog

Save: Saves changes made to the column configuration.

Move up: It moves up the column name selected.

Move down: It moves down the column name selected.

Select all: Select all checkboxes to enable all columns.

Uncheck all: Uncheck all checkboxes to disable all columns.

Reset: Reset the Survey Columns to the default options.

Default Activity: When slide sheet data is saved, Well Seeker will fill in any time gaps with this displayed activity code.

Figure 267: Default Activity Code window

Highlight Activity: When selected, the following lines will be automatically highlighted in the Daily Activity Grid:

• Any rotary drilling activity (2K) will be highlighted Blue

• Any slide drilling activity (2J) will be highlighted Green

• Picking up or laying down BHA (6O or 6P) will be highlighted Yellow

• Any non-productive time (8 or 26) activity will be highlighted Red

Figure 250: Daily Activity Highlight Activity

Include Database: Toggling this option on will include the currently selected Well Seeker database as part of the morning report package zip file. If the database size is more than 50Mb it will not be included.
