Innova Drilling & Intervention
  • Introduction to Innova Documentation
    • Documentation Updates
  • Promotional Info & Software Overview
    • Feature Updates
      • Well Seeker Pro - BGGM Error Estimate Integration
      • Well Seeker Pro - Superior QC Integration
      • Innova App & Portal - Feature Update
    • Promotional Info
      • Innova App & Web Portal
      • Innova Technical Specification
  • Generic Documents
    • Innova Generic Documents
      • Innova Software Licensing
      • License Renewal
      • Installing Updates
  • Quick Start Guides
    • Well Seeker X Guides
      • Well Seeker X: Transition Guide
      • Well Seeker X: Installation Guide
      • Well Seeker X: How To Guide
      • Well Seeker X: Backing up a WS Db
      • Well Seeker X: Changing Datum Elevations
      • Well Seeker X: Adding an IPM
      • Well Seeker X: Local Login Guide
      • Well Seeker X: Project Ahead Guide
      • Well Seeker X: Survey Correction Integration Guide
      • Updating Well Seeker X
      • Well Seeker X: Job Startup Procedure
      • Well Seeker X: Sidetrack Guide
  • Well Seeker Pro Guides
    • Installation Guide
    • How To Guide
    • Sidetrack Guide
    • Project Ahead Guide
    • Recommended Job Startup Procedure
    • Adding A New CRS
    • Adding an IPM How To Guide
    • Backing Up A Well Seeker Database
    • Changing Datum Elevation
    • Compass Export Files & Db Naming Conventions
    • Compass IPM Issues
    • Downlink Control User Guide
    • Frequently Asked Questions
    • Geomag Model Installation Guide
    • Inclination Only IPM Guidelines
    • Innova Remote Client Setup Guide
    • Oasis Integration Guide
    • Printing A Wall Plot To PDF
    • Remote Client How to Guide
    • Rig States Guide
    • Solo Cloud Integration Guide
    • Survey Correction Integration Guide
    • Toolbars How To Guide
    • Tool Orders User Guide
    • Well Analytics How to Guide
    • WITS Setup & Remote Directional Drilling
    • Tool Rental Run Tracking Guide
    • Certified Survey Reports How To Guide
  • Innova Engineering Guides
    • Installation Guide
    • Hydraulics Module Quick Start Guide
    • Torque & Drag Quick Start Guide
    • Apparent WOB Chart
    • Casing Standoff Quick Start Guide
    • Casing Wear Prediction
    • Cementing How To Guide
    • Drill Pipe Fatigue Plot
    • Hole Cleaning Guide
    • Jar Placement Guide
    • QAQC SCC & MSA
    • SAG Quick Start Guide
  • Remote Database Guides
    • Creating an AWS Database
    • Creating an Azure Database
    • Managing an AWS Database
  • App & Portal Guides
    • Automated Bit Grading Guide
    • Oasis Integration Guide
    • Providing 3rd Party Access to Your Organizations Server Data
    • Web Portal Data Acquisition and EDR Guide
    • Web Portal Engineering Quick Start Guide
    • Web Portal - MFA Guide
    • Innova in any Language - Web Browser Translation Guide
  • Innova ICP API Guides
    • Registering an OAuth App on Azure
    • Registering an OAuth App on Okta
  • Manuals
  • Well Seeker Pro Manual
    • 1.0 - System Requirements
    • 2.0 - End User License Agreement
    • 3.0 - Software Overview
    • 4.0 - Getting Started
    • 5.0 - Main User Interface
    • 6.0 - Main Menu
      • 6.1 - File Menu
      • 6.2 – Edit Menu
      • 6.3 - View Menu
      • 6.4 - Tools Menu
      • 6.5 – Reports Menu
      • 6.6 - Plots Menu
      • 6.7 - Chart Properties
      • 6.8 - Context Menu
      • 6.9 - Windows Menu
      • 6.10 - Help Menu
    • 7.0 - Database Navigator
    • 8.0 - Well Seeker PRO Database Structure
    • 9.0 - Survey View
    • 10.0 - Plan View
    • 11.0 - Targets
    • 12.0 - Charts
    • 13.0 - Reporting
      • 13.1 - Activity Codes
      • 13.2 - Cost Codes
      • 13.3 - Phase Codes
      • 13.4– Daily Reporting
      • 13.5 – Drill String Editor
      • 13.6 - Tool Inventory
      • 13.7 – Shipping Addresses
      • 13.8 – Shipping Ticket
      • 13.9 – Pipe Tally
      • 13.10 – Slide Sheet
      • 13.11 – Directional Drilling Dashboard
      • 13.12 – Well Analytics
      • 13.13 – AFE Plan Designer
      • 13.14 – Daily Activity Editor
      • 13.15 – Create Bid Sheet
      • 13.16 – Export Reporting Data
      • 13.17 – Import Reporting Data
      • 13.18 – Transfer Reporting Data
      • 13.19 – In Zone %
      • 13.20 – Recover Slide Sheet from DDR
      • 13.21 – Tool Orders
    • 14.0 - Well Analytics
    • 15.0 - AFE Plan Designer
    • Appendix A – Software Licensing
    • Appendix B - Nomenclature
    • Appendix C - Acknowledgements
    • Appendix D – Error Model Description
    • Appendix E – Drill String Editor Component Properties
    • Appendix F–Slide Sheet Column Options
  • Innova Engineering Manual
    • System Requirements
    • End User License Agreement
    • 1.0 - Software Overview
    • 2.0 - Getting Started
    • 3.0 – Main User interface
    • 4.0 - Menus
    • 5.0 - Toolbars
    • 6.0 – Drill String, Well Geometry and Fluids Tab
    • 7.0 - Surveys Tab
    • 8.0 – Engineering Parameters Tab
    • 9.0 – Drilling Data Tab
    • 10.0 - Cementing Tab
    • 11.0 - Chart Results
    • 12.0 - Table Results
    • Appendix A – Software Licensing
    • Appendix B – Nomenclature
    • Appendix C – Axial and Cross Axial Magnetic Correction
    • Appendix D – Pole Strengths
    • Appendix E – Component Details
  • Innova App Manual
    • 1.0 - Introduction
    • 2.0 - App Installation
    • 3.0 - Logging In
    • 4.0 - Menus
    • 5.0 - Wells
    • 6.0 - Logistics
    • 7.0 - Analytics
    • 8.0 - Innova Admin
    • 9.0 – Well Seeker Admin
    • 10.0 - User Management
    • Appendix A – Setting Up A New User
    • 12 User Management
  • Web Portal Manual
    • 1.0 - Login
    • 3.0 - Main Interface
    • 4.0 - Wells List
    • 5.0 - Object Explorer
    • 6.0 - Well Views
      • 6.1 - Well Details
      • 6.3 - Anti Collision
      • 6.4 - Daily Reports
      • 6.5 - Inventory
      • 6.12 - Engineering Dashboard
    • 7.0 - Multiwell Dashboard
    • 9.0 - Logistics
    • 10.0 - Analytics
    • 11.0 - Database Admin Tools
      • 11.3 - Rig Names
      • 11.7 - Personnel Names
      • 11.9 - Audit Data
    • 13.0 - Error Models
    • 14.0 - Tool Orders
    • 17.0 - Data Acquisition
    • 19.0 - User Management
  • Release Notes
    • Well Seeker Pro Release Notes
    • Innova Engineering Release Notes
  • Video Guides
    • How To Videos
      • Well Seeker Pro
        • Getting Started
          • How to Install WSP
          • WSP Licensing
          • User Interface Overview
          • How to Backup a WSP Database
          • Database Tree Overview
          • Setup Files
          • Entering a Well Plan from a PDF
          • Slot Templates
          • Targets
          • How To Customize Toolbars
          • Depth Reference Change
          • Unit Sets
          • IPM File Management
          • Well Seeker Pro Update Feature
          • WSP - Company Specific Install File
        • Import / Export
          • Importing a Compass Export File
          • Exporting and Importing
        • Plots
          • Introduction to Plots
          • 3D Plot
        • Project Ahead - Multi-Nudge Tool
          • Project Ahead - Multi Nudge Tool
          • Update to Multi-Nudge Dialog
        • Anti-Collision Introduction
        • Tools
          • Geomagnetics Calculator
          • Motor Yield Calculator
          • Interpolate Dialog
          • Innova RSS Remote Client
          • RSS Downlink Control
          • Remote Data Fetch
        • Daily Reporting
          • Daily Reporting
          • Slide Sheets
          • Component Catalogue
          • Daily Activity Editor
          • Check Daily Activity Against Slide Sheet
          • DD Dashboard Introduction
          • WITS Setup
          • MWD Reporting
          • Rig States - Oscillating while Sliding
          • Choosing Phase and Activity Codes
          • Daily Reporting QA & QC
          • Recover Slide Sheet from DDR
        • Wall Plot Composer
        • Innova Remote Client
        • Downlink Control
        • Print Invoice Date Range
        • Reporting an Issue
      • Innova Engineering
        • Getting Started
          • Creating a BHA
          • Installation
          • License Files
          • User Interface Overview
          • Torque & Drag Setup
          • Hydraulics Setup
          • Reports
          • Drilling Data
          • Charts
        • Survey Correction
          • Short Collar Correction (SCC)
          • SAG
        • Engineering Tools
          • Quick Bit Hydraulics
          • Pump Data
          • Mud Calculations
          • Pipe Length Calculator
          • Component Catalogue
          • Interpolate
          • Fluid Library
          • Temperature Gradient
          • Tubular Properties Calculator
        • BHA Analysis
          • BHA Analysis
          • BHA Sensitivity Analysis
        • Casing Standoff
        • Back Calculate Friction Factors
      • Innova App
        • Innova App - Installation and Login
        • Innova App - Wells Page
        • Innova App - Well Data
        • Innova App - Side Menu
        • Innova App - User Management
        • Innova App - Analytics
        • Innova App - Logistics
        • Innova App - Chart Settings
      • Web Portal
        • Web Portal - Login
        • Web Portal - User Management
        • Web Portal - Changing Your Password
        • Web Portal - Analytics
        • Web Portal - Bulk Edit
    • Innova Online Training
      • Well Seeker Pro
        • 01 - Well Seeker Pro Introduction
        • 02 - Well Seeker Pro Database Tree Overview
        • 03 - Well Seeker Pro Database Backup and Export Files
        • 04 - Well Seeker Pro Well Planning Introduction
        • 05 - Well Seeker Pro Introduction to Anti Collision
        • 06 - Well Seeker Pro Directional Drilling Tools
        • 07 - Well Seeker Pro Daily Reporting Job Setup
        • 08 - Well Seeker Pro Daily Reporting Operations
        • 09 - Well Seeker Pro Daily Reporting End of Well
        • 10 - Well Seeker Pro Well Analytics
        • 11 - Well Seeker Pro Chart Properties
        • 12 - Well Seeker Pro Server Db Ops Video Part 1
          • 12 - Db Ops Part 1 - w/ RT Data Exchange
          • 12 - Db Ops Part 1 - w/ Data Synchronization
        • 13 - Well Seeker Pro Server Db Ops Video Part 2
        • 14 - Well Seeker Pro WITS WITSML Functionality
        • 15 - Well Seeker Pro Directional Drilling Dashboard
      • Innova Engineering
        • 01 - Innova Engineering Introduction
        • 02 - Innova Engineering Hydraulics
        • 03 - Innova Engineering Torque and Drag
        • 04 - Innova Engineering Charts & Reports
        • 05 - SCC and Magnetic Interference
        • 06 - SAG Correction
  • Technical Notes
    • High Priority
      • WS 3D Plot Issues
      • Check for Update Function
      • Data Synchronization Feature Update
      • Products & Features and User Permissions Update
      • WS 3D Chart C2C Distance Critical Update
      • Critical update for Anti-Collision in Inc Only Wells
    • Medium Priority
      • Slide Sheet Overwrite Issue
    • Low Priority
      • AC Report vs RTAC Dialog
      • Build Turn Planning Method From Vertical
      • Data Fetch Update
      • EDM Import Function Update
      • Excel Report Printing Error
      • Force Layout Reset
      • Hardware Malfunction casuing WITS related error
      • Inclination Only IPMs Sensitivity to Zero Inclination
      • IPM File Management
      • Large Well Seeker Database
      • Login Credential Management Change
      • Missing MFPlat.DLL Error
      • Missing MFC140U.DLL Error
      • Missing Microsoft Edge Update
      • Missing SQL Driver
      • Offset Selector - C2C Global Scan
      • Remote Data Fetch Icons Missing
      • Remote Data Fetch Procedural Recommendations
      • Sidetrack Reporting
      • Survey Tool BGS integration
      • Target Line Dip Angle Adjusted For Azimuth Changes
      • Third Party Survey Correction Integration
      • Troubleshooting Anti-Collision
      • Update to Multi-Nudge Projection Dialog
      • Up/Down discrepancies with Target Line Changes in 3D Laterals
      • Unit Set File Format Updated
      • Well Seeker X Failure to Open
      • Well Seeker Pro Import Function Update
      • Well Seeker Pro Change to UD LR Logic at low inclination
      • Error Ellipses at Sidetrack Depth – Well Seeker vs Compass Comparison
      • Well Seeker Pro CRS Updated Functionality
      • Well Seeker Pro - Compass EDM Erroneous Grid Convergence
      • Well Seeker Pro - Real Time Data Exchange Update
      • Well Seeker Pro - Slide Sheet Crash in v2.2.1.1
      • Well Seeker Pro - Slide Sheet Update
      • WSP & Innova Portal - Object Validation Feature
      • WSP - Solo Cloud Target Lines Update
      • WSP - Charts & WPC Improvements
      • WS - New Outlook Email Automation Unavailable
      • Well Seeker X: Displays Not Fully Visible
  • Development
    • Innova Cloud Portal (ICP) API
    • Accessing the API for Non-Programmers
Powered by GitBook
On this page
  • 1.0 - Introduction
  • 2.0 - Office -Pre-Job Steps
  • 2.1 – Company Setup
  • 2.2 – Phase & Activity Codes
  • 2.3 – Creating the Well Plan
  • 2.4 – Creating the Actual Well
  • 3.0 - Rig Site – Pre-Job Steps
  • 3.1 – Set Up Data Exchange
  • 3.2 – WITS Setup
  • 4.0 - Rig Site – Drilling Operations
  • 5.0 - Office – Monitoring Drilling Operations
  • 6.0 - Rig Site – End Of Well Steps
  • 7.0 - Office – Post-Job Steps

Was this helpful?

Export as PDF
  1. Quick Start Guides
  2. Well Seeker X Guides

Well Seeker X: Job Startup Procedure

1.0 - Introduction

The following document details the recommended procedures to follow in Well Seeker X from pre job, through to post job. These procedures are designed to aid office and field personnel by providing a structured, repeatable workflow for them to follow.

The document is split into the following sections:

  • Office - Pre-Job Steps

  • Rig Site – Pre-Job Steps

  • Rig Site – WITS Setup

  • Rig Site- Drilling Operations

  • Office – Monitoring Drilling Operations

  • Rig Site – End Of Well Steps

  • Office – Post-Job Steps

2.0 - Office -Pre-Job Steps

These steps describe how to set up a job on your company’s remote server database, so that it is ready for the rig crew to download when they arrive at the rig site.

2.1 – Company Setup

The data detailed in this section is relevant to all items in your server database. You will enter this data once, and only revisit these dialogs when an update is required. When the DD/MWD Engineers in the field download data from the server, the information entered in this section will be included, and will be available for them as they begin to fill in their daily reports.

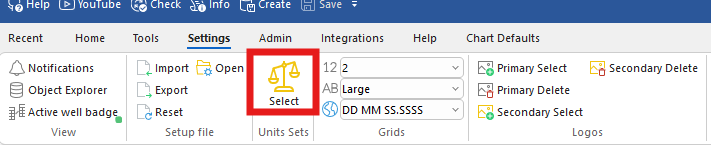

  1. Before entering any data in Well Seeker X, check that you are using the correct unit set by clicking on the Select button in the Settings ribbon.

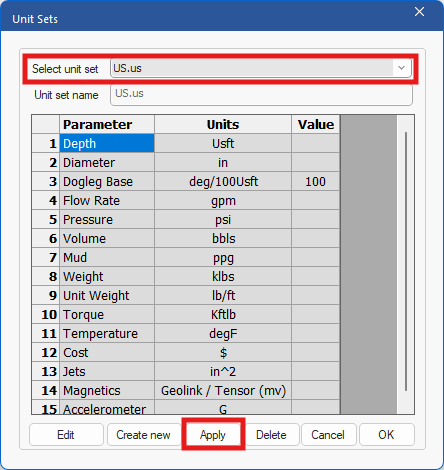

Select your unit set using the dropdown box at the top of the dialog, and confirm by clicking on Apply.

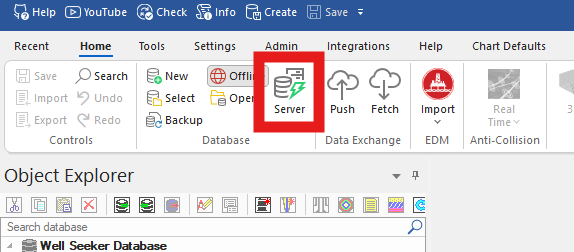

  1. Log onto the SQL server database by clicking on the Server button in the Home ribbon.

Login using your username and password.

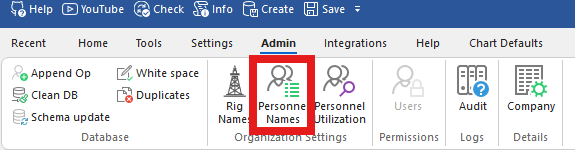

  1. Once you have logged in, select the Admin ribbon and select Personnel Names.

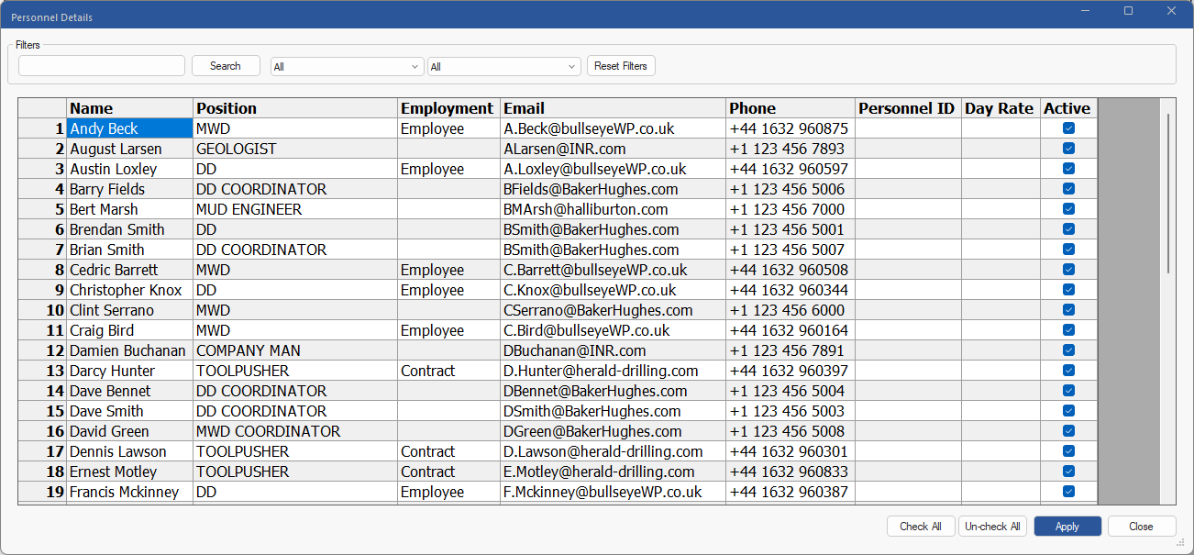

  1. In the Personnel Details window, update the list of commonly used field personnel. Ensure that the DD Coordinator, MWD Coordinator, DDs and MWD Engineers for the upcoming job are present in the list. Other personnel are optional. Once you are satisfied, click on the Apply button and then Close. These names will then be available to select from a dropdown list in the Daily Reporting.

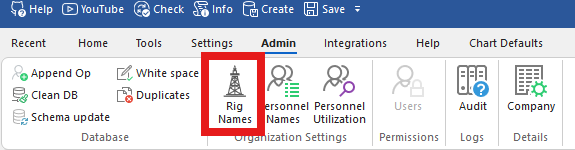

  1. In the Admin ribbon, select Rig Names.

  1. In the Rig Names window, update the list of rigs that your organization operates on. Ensure that as a minimum, the rig being used in the upcoming job is present in the list and is selected as Active. Once you are satisfied, click on the Apply button and then Close. These rig names will then be available to select from a dropdown list in the Daily Reporting.

  1. Open the Home ribbon and select Addresses.

  1. In the Addresses window, enter any relevant addresses. For example, the address of the rig and the workshop that tools will be shipped to/from. This will aid the field personnel when they come to create shipping tickets as they will be available via a dropdown menu. Once you are satisfied, click on the Apply button and then Close.

  1. Select the Tools ribbon and then click on MWD Probes to open the Probe Catalog. Enter the details of the M/LWD probe types used by your organization.

  1. Select the Templates option within the Probe Catalog to open the MWD Probe Templates dialog. Where appropriate, Add any templates, name them appropriately and save. This data will allow the MWD Engineer in the field to select commonly used probe configurations and automatically calculate sensor offsets.

2.2 – Phase & Activity Codes

Phase and Activity codes are a very important part of the Daily Reporting package, and are selected at Operator level in the Object Explorer. While not recommended, this means that if required, it is possible to utilize different phase and Activity codes across different Operators. This data should only be entered once per operator.

This section assumes that at least one operator exists in the Object Explorer tree. If the relevant Operator is not displayed in the tree, please refer to section 2.3.

  1. If you are not already logged into your server database, do so by clicking on the Server button in the Home ribbon, and then log in with your username and password.

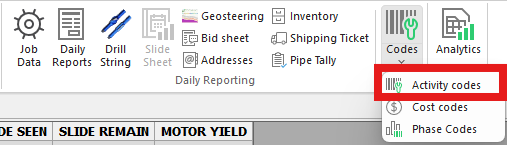

  1. Click on the operator, or any level in the object explorer under the operator, and then select Codes in the Home ribbon. From the dropdown box, select Activity Codes.

  1. In the Activity Codes window, verify the activity codes are correct. Any changes to the codes here will apply to all wells under the current operator. Once you are satisfied, click on the Save icon and close the window.

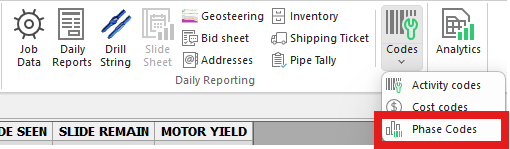

  1. Click on the operator, or any level in the object explorer under the operator, and then select Codes in the Home ribbon. From the dropdown box, select Phase Codes.

  1. In the Phase Codes window, verify the phase codes are correct. Any changes to the codes here will apply to all wells under the current operator. Once you are satisfied, click on the Save icon and close the window.

2.3 – Creating the Well Plan

While everything in the Object Explorer can be created and entered manually by the user, it is also possible to import Compass EDM files, which will automatically populate all levels of the tree. This section details both the Compass Import process and the process of creating everything from scratch.

2.3.1 – Importing from Compass

When creating a Compass export for an upcoming well, it is recommended that in addition to the plan, the well planner also includes all offset wells, and a blank survey for the well which is going to be drilled. Including this blank survey ensures that everything is setup correctly by the well planner and means that all the DD needs to do is start entering the surveys as they are taken.

  1. Review your Compass import settings.

  1. Select Import Compass EDM file.

  1. If the Operator already existed in the database, check that the well plan and offsets have correctly imported into the existing operator. If they did not, this is because the operator name in the Well Seeker database and the operator name in the import file are not exactly the same.

  2. Make sure that your principal well plan has been correctly designated. Right click on the well plan and select Properties.

  1. In the Plan Properties window, check the Set as Principal Plan checkbox and click Apply, then Close.

2.3.2 – Creating from Scratch

This section details the steps required to create a well plan when there is no existing data in the database. If an Operator, Field, Facility or Well Already exists, then the user can skip to the relevant part of this section.

  1. Right clicking on Well Seeker Database in the Object Explorer section and select Insert New Operator.

  1. In the Operator Properties window, enter the operator name and select a logo. You can also set up the anti-collision rules. These rules will apply to all wells stored under this operator. Click Apply and the close.

  2. Right click on the operator and select Insert New Field.

  3. In the Field Properties window, input the field name, select the co-ordinate reference system, and enter a reference location for the field. You can also change the system vertical datum, but note that this defines where 0 TVD subsea is, so should almost always be left as MSL. After checking your inputs, click on Apply and then Close.

  1. Right click on the field and select Insert New Facility.

  1. In the Facility Properties window, input the facility name, select the north reference, and enter a location for the facility. After checking your inputs, click on Apply and then Close.

  2. Right click on the facility and select Insert New Well.

  3. In the Well Properties window, input the well name, the wellhead surface location, and set up the depth reference. After checking your inputs, click on Apply and then Close.

  4. Right click on the well and select Insert Planned Well.

  1. In the Object Explorer, double click on the Well Plan level to open it. Use the planning tools to create your well plan, then click on Save in the Home ribbon.

  2. Right click on the well plan and select properties. In the Plan Properties window, assign a survey error model using the IPM column in the Survey Program Section. Click on Apply and then Close.

2.4 – Creating the Actual Well

After creating the principal plan for the job, you should set up the actual well for the directional driller. If the plan has been imported via a Compass EDM, it is highly recommended that an Actual Well is included as it will remove the requirement to create this manually in Well Seeker.

  1. Right click at well level and select Insert new actual well.

  2. Right click at actual well level and select Insert new survey.

  3. Input and check survey name, tie on details and select survey instrument/IPM. After checking your inputs, click on Apply and then Close.

  4. Double click on the newly created survey to open the survey table. Click on the Save icon. When the program asks Do you wish to add this survey to the survey program? Click Yes.

  5. Now click on the Select Offsets icon in the Home ribbon.

  6. In the Select Offsets window, select all relevant offset wells. If you need to select offset well plans, you will need to make them visible by activating them in the Filters section. Once you have selected the desired offsets, click on Apply and then Close.

    1. Note: If you have a plan in your database which is not showing in the below tree, it may be because the plan has been selected as Complete in the Plan Properties. Uncheck this option to see the plan if required.

    2. This is an important step because when the field engineers pull this well from the server, they can choose to also pull the offset wells. Correctly selecting the offset wells at this stage, ensures they will pull all the required offsets when the job starts.

  7. Click on an item in the object explorer at Well level or below. In the Home ribbon, select Codes. From the dropdown box, select Cost Codes.

  8. In the Cost Codes window, enter the cost codes for the well. Once you are satisfied, click on Apply and Close.

    1. NOTE: These Cost Codes will feed the Daily Costs, which means the field engineer will choose these options from a drop down menu and will not need to enter them manually each day.

  9. Click on an item in the object explorer at actual well level or below, and then click on the Job Data button in the Home ribbon.

  10. In the Well Details window, set the Well Status as Upcoming. Select the DD Coordinator and the MWD Coordinator from the dropdown menus. If they are not available, go back to 2.1 Company Setup and update the Personnel Details. Select the Rig from the dropdown menu. If the desired rig is not available, go back to 2.1 Company Setup and update the Rig Names. Fill in any other required fields, in particular the Job# and API# if known. Click on the Apply button and then close the window.

NOTE: The Well Status must be set to Upcoming, Standby or Active in the server database, or the field engineers will not be able to push updates during rig operations to the server.

  1. Click on the actual well in the object explorer, and then click on the Daily Reports button in the Home ribbon.

  2. Select the Settings ribbon and select Default Activity. This option sets the activity and comment that will be used to fill in time gaps when the Slide Sheet sends updates to the Daily Report. Usually this will be survey and connection time, so pick an activity that represents that.

If it is company policy to count survey and connection time as circulating time, choose an activity code starting with 5 such as 5A: Circulate. If not, choose a different code such as 10D: Survey & Connection. If in doubt, check with your coordinator.

  1. Right click on the actual well and select External Files.

  1. In the External Files dialog, add any file that you want the rig to have when they start the job. Click on the folder icon to select the desired file. You have the option to assign a category to the file if you wish using the drop down box. Click on the Add button to add the selected file to the well. Once you have added all of the desired files, click on the Close button.

3.0 - Rig Site – Pre-Job Steps

These steps detail how the rig crew can download the job data from the remote server, and get the software ready to record drilling activity.

  1. Open Well Seeker.

  2. If you use a single database to store all of your wells, select it by opening the Home ribbon and click on Select. If not, create a new blank database by opening the Home menu and click on New. After you have created your new database, you will need to select it using Select.

  3. You can confirm your currently selected database by checking the path displayed on the status bar at the bottom of your Well Seeker window.

  4. Use the Remote Data Fetch tool to pull down your job from the server database. Open the Home ribbon and select Fetch in the Data Exchange section.

  5. In the Data Fetch window, the ICDS Server and Port should already be filled with your companies details. If not, you are likely using the incorrect license, and should contact your company administrator. Click on the Connect button.

  6. Find your job in the list of wells on the server database. You can use the search box and the filter drop down boxes at the top of the window to narrow down the list.

  7. Make sure that Pull Offset Wells and Pull Principal Plan have been turned ON in the options section the bottom right corner of the window.

  8. Select the actual well for your job from the list by clicking on the checkbox, then click on the Fetch Data button. When the download is complete, the message box should display the message Data Fetch Complete! Your object explorer should now be populated with the relevant wells and you can now close the window.

  9. Right click on the actual well and select External Files. Here you can view any files that were attached to the job. You can also put any signed tickets here during the job.

  10. Right click on the well plan and select Properties. Check that all of the information is correct, and then click on Close.

  11. Double Left click on the well plan to open it. Check that the well plan matches the well planning report.

  12. The office will have made an actual well for you. Right click on the actual well and select properties. Check that all of the information is correct, and then click on Close.

  13. Click on the actual well in the object explorer, and then click on the Inventory button in the Home ribbon.

  14. Fill in the inventory with the tools that you have on location. When you are finished, click on the Save button and then close the window.

  15. Click on the actual well in the object explorer, and then click on the Drill String button in the Home ribbon.

  16. In the Drill String Editor window click on the Add New BHA icon in the toolbar. In the newly created BHA, input the BHA description and BHA number. MWD number, mud weight and target formation can also be entered if you have that information.

At least one BHA component must be entered before the BHA can be saved.

  1. Start filling in the components for the BHA, starting from the bit. For each component, start by selecting the component type from the Component column. Then right click on the row and select Insert from Inventory. This will allow you to pick one of the components that you recorded in the Tool Inventory. Alternatively, you can manually fill in the component details or select Insert from Catalogue. This will allow you to insert components from a list of generic tools, which can then be edited as required.

  2. After inserting a component, fill in the necessary Component Properties on the right.

  3. Repeat the process for each component until the BHA is complete. You can also fill in the Rig, MWD #, Mud Weight and target Formation if required.

  4. Click on the Surface System icon to open the MWD Surface System dialog. Enter the serial numbers for your surface system components. If you recorded your surface system items in the Inventory, they will be available here as dropdowns. If not, you will need to enter them manually. When you are finished, click Apply and then close.

  5. Click on the MWD Probe Config icon to open the MWD Config dialog. Use the controls to build the probe config using items in the catalog section, or select from the probe config dropdown menu to select a probe configuration. The automatically calculated sensor offsets will display in the Sensor Offsets section. When you click on the Apply button, the sensor serial numbers and sensor offsets will be added to the component properties of the MWD/LWD component.

    1. Note: If the probe catalog has not been set up on your organization’s remote server you will not be able to use this dialog, and must manually enter the MWD sensor information into the MWD/LWD component properties.

  6. Click on the Save icon and then close the Drill String window.

  7. Click on the actual well in the object explorer, and then click on the Job Data button in the Home ribbon.

  8. Confirm the data filled in here by the office. Make sure that the Job # and Rig fields have been filled in. Other fields are optional. Set the Well Status to Active. Then click on Apply and close.

  9. Click on the actual well in the object explorer, and then click on the Daily Reports button in the Home ribbon.

  1. Click on the Add button in the Home ribbon to create your first day, or if it already exists, adjust the date using the date selector.

  2. Click on the Personnel icon in the home ribbon.

  3. Select the personnel working at the rig site, and enter their time on/off. At a minimum, select the Day/Night DDs and MWD Engineers. After entering the information, click on Apply and then close.

  4. If you wish to add pump information, you can add it by clicking on the Pumps button in the Home ribbon. After entering the pump data, click on Apply.

  5. Click on the Costs button in the Home ribbon. Enter the charges for the day using the dropdown menu in the Description column. Enter the quantity and if applicable, select an associated BHA. If the SN Dropdown option is checked, the SN cell will provide a dropdown list with the SN of all tools in the inventory. After entering the charges, click on Apply.

  6. Open the Settings ribbon and select Default Activity. Double check that the office have set the correct default activity code. If it is company policy to count survey and connection time as circulating time, choose an activity code starting with 5 such as 5A: Circulate. If not, choose a different code such as 10D: Survey & Connection. If in doubt, check with your coordinator.

  7. You can now start recording your daily activities. Remember to save regularly by clicking on the Save icon in the main toolbar.

The Daily Reports window does not need to be closed in order for you to work in other parts of Well Seeker. It can be minimized or moved to another screen.

3.1 – Set Up Data Exchange

All rigs should send data back to the server database. Well Seeker X has two methods of transmitting data from the rig back to the server database – Data Sync and the Real Time Data Exchange. If your organisation has set up the Data Sync, you should use that method. Otherwise, use the Real Time Data Exchange.

3.1.1 – Data Sync

If your organisation has set up the Data Sync, there is minimal setup required at the rig. For the data sync, the following needs to be in place at the rig site:

  1. You must be using a license that is registered to your organization. For most users this will already be the case.

  2. You must have an active internet connection.

  3. The well that you want to sync must have exactly the same object explorer naming structure on both the local computer and your organization’s remote server database. This includes Operator, Field, Facility, Well and Actual well name. If you used the Data Fetch to pull the well information from the server then this will be the case.

Once these three criteria are met, the local database will automatically start to sync with the server database whenever you click on save or apply in a dialog. The status of the Data Sync is displayed in the bottom right corner of the main interface:

The Data Sync can be temporary disabled by toggling the Offline option in the Home ribbon:

3.1.2 – Real Time Data Exchange

Unlike the Data Sync, the Real Time Data Exchange must be manually set up and started by the DD/MWD at the rig site.

  1. In the Daily Reports window, click on the Data Exchange icon in the Home ribbon.

If you are in the main Well Seeker interface, click on the Push button in the Home ribbon.

  1. In the Data Exchange dialog, select the current job by checking the checkbox in the Select column. If your well is not showing in the list, go back to Step 24 in section 3.0 and set the well status to Active.

  2. In the ICDS Server section the ICDS Server Address and Port should already be filled with your companies details. If not, you are likely using the incorrect license, and should contact your company administrator.

  3. In the Select Data section, select the data that you wish to push back to the server. At a minimum, select Daily Reports. Survey data is always pushed. For other selections, discuss with your coordinator.

  4. In the Data Transfer section, set the update rate. This sets the time between pushes to the server. For this example, we will use 30 minutes. Click on the Start button to begin running the data exchange.

  5. You can now close the Data Exchange window. It will keep running in the background. You can view the status of the data exchange in the bottom right hand corner of the main Well Seeker window.

3.2 – WITS Setup

This section only applies if you are using a WITS feed from the rig to automatically fill in your slide sheet. If you are recording your slide sheet manually, you can skip to the next section.

  1. In the main Well Seeker interface, open the Settings ribbon and select WITS under the Mapping section. Make sure that the RECORD_ID and FIELD_ID match with the incoming WITS data. When you have finished, click on Apply. Note: If you are using SoloBox or RigSense at the rig site you can skip this step.

  1. The rest of the WITS options are found in the slide sheet. In the object explorer, double click on the survey for the job to open it. Then click on Slide Sheet in the Home ribbon.

  2. In the slide sheet window, open the Serial/TCP WITS dialog by clicking on Serial/TCP in the WITS section of the Home ribbon.

  3. Choose your WITS settings depending on the method of input:

    1. If you are using a serial cable, select your comm port in the Serial WITS Settings section.

    2. If you are using an ethernet cable, select your input type, port and IP address in the Ethernet WITS settings.

    3. If you are using SoloBox or RigSense at the rig site to receive your WITS data, toggle the respective checkbox in the Options section. This will automatically configure your WITS settings and mappings for you.

  4. Click on Start Reading. You should see data coming through in the WITS Data Stream section. Use the WITS Status section to monitor the health of the WITS feed.

  5. It is also possible to send data back to the server. In the Server Data Sync section , the IP and Port should already be filled with your companies details. If not, you are likely using the incorrect license, and should contact your company administrator. Check the Send Data box to begin pushing data back to the server. The WITS Status section will indicate if the last push to the server was successful.

  6. Minimize the WITS Comms window. Do NOT close it, as this will stop the incoming WITS data.

  7. In the Rig States section of the ribbon, click on the Settings button to open the Rig States configuration dialog.

You can also set Auto Thresholds to YES. This will cause Well Seeker to dynamically adjust the hookload and RPM values based on incoming data. Note that the hookload will only be adjusted down, based on connection data.

  1. Minimize the Rig States window. Do NOT close it.

  2. In the slide sheet window, make sure that the correct BHA is selected in the drop down box. Click on the green Start icon in the Rig States section of the ribbon. You will see the message Live rig states running appear and you will no longer be able to edit the slide sheet. Instead it will automatically populate using the incoming WITS data. To stop recording, click on the red Stop icon in the Rig States section of the ribbon. Remember to Save regularly using the save icon.

  3. Minimize the slide sheet, do not close it while recording WITS data. You will be able to work in the Daily Reports and main Well Seeker windows with the slide sheet minimized in the background.

4.0 - Rig Site – Drilling Operations

The steps below detail some of the tools available to the DD and MWD Engineers during drilling operations, as well as recommended procedures for filling in and performing quality control on your reporting data.

  1. In the Daily Report dialog, fill in your daily reporting activities until you are on bottom and drilling. From this point, begin recording your slide sheet and surveys. Drilling activities will be automatically transferred from the slide sheet to the daily report whenever the slide sheet is saved, as detailed in Step 9, below.

  2. When viewing a survey sheet, the Up/Down, Left/Right and (Centre-to-Centre) Dist columns can be used to monitor how closely you are following the principal plan. If these columns are not displayed in the survey grid, they can be activated using the Show/Hide option in the Settings menu.

  3. If the wrong plan is set as the principal, it can be changed using the Set as principal plan option in the Plan Properties window.

  4. Plots can be viewed when a survey or plan is open. Open a plot by clicking on its icon in the Charts section of the Home ribbon.

  5. When viewing a plot, offset wells/plans can be toggled on or off by clicking on the Show Offsets icon on the Home ribbon. The selected offsets can be edited by clicking on the Select Offsets icon just above the Show Offsets button.

  6. Projections can be added to a survey using the Multi-Project and Project Ahead tools. Multi-project allows you to add multiple, simple projections, while Project Ahead utilises similar planning tools as the well plan. Both of these windows can be left open while working in other parts of the software. Access them in the Bit Projection section of the Home ribbon.

  7. The Real Time Anti-Collision (RT AC) dialog can be accessed when viewing a survey. Open it by clicking on the Real Time button in the Home ribbon. The RTAC will display the anti-collision results for all selected offsets, the principal plan and any lease lines/hard lines.

  8. The Directional Drilling (DD) Dashboard collects data from multiple sources within Well Seeker and displays them in one interface, allowing the Directional Driller or an RTOC to monitor drilling operations from a single screen. It is accessed via the Slide Sheet dialog by clicking on the DD Dashboard icon in the Tools section of the ribbon.

The DD Dashboard will then open. It can be left open while working in other parts of the software. Multiple DD dashboards can be opened at the same time with different configurations, but this can be taxing on your computer’s CPU and memory.

  • Toolface rose displaying details of the current slide.

  • Real time anti-collision

  • Recent surveys with automatic bit projection.

  • 3D plot showing principal plan and bit projection.

  • Drilling parameters plot and current rig state. Requires WITS data from the rig.

  • Drilling recommendations

  1. Whenever you click on Save in the Slide Sheet, the program will automatically push drilling activity recorded in the Slide Sheet to the relevant day in the Daily Report. NOTE: Drilling activities populated via the slide sheet cannot be edited in the Daily Report; if you need to make changes you must do so in the Slide Sheet and click on Save to update the DDR.

Any gaps in drilling activity will be filled in with the default activity code, but can still be edited if required. This default can be set by clicking on the Default Activity icon in the Settings ribbon in the Daily Report window.

  1. Fill in the Daily Data and Mud Data sections on the right hand side of each Daily Reports window. Update the Personnel dialog with any changes.

  2. Click on the Costs icon in the Home ribbon in the Daily Reports window to open the Daily Costs dialog. Enter the relevant cost data for the day, and click on Apply to save your changes.

  3. At the end of each day, it is recommended to QC your Daily Report. Daily activities will be highlighted in red if:

    1. The start time of an activity does not match the end time of the previous activity.

    2. The start depth of an activity does not match the end depth of the previous activity.

    3. The user changes BHA without a 6O/6P activity.

    4. There is more than 1 6O/6P activity for any single BHA

    5. A phase or BHA has been chosen that does not match the phase or BHA of the activities above and below it.

    6. Any code 8 or 26 are selected. These represent NPT and will flag red, even though there is no error.

The top right corner of the Daily Reports window contains the Data Validation section. The #Errors field displays the number of errors found on the current day. The Prev and Next options can be used to quickly scroll through errors, and Desc field gives a description of the currently selected error.

In addition, you should check:

g. The depth at the start of the day is correct.

f. All activity codes are correct.

i. The first activity for a BHA should be 6O and the last should be 6P. If no BHA is in the hole, the BHA field should be blank.

j. Every activity has a phase assigned to it.

  1. It is also recommended that you backup your database at least once a day. In the main Well Seeker interface, open the Home ribbon and select Backup in the Database section. This will let you save a backup copy of your database. It is recommended that you never overwrite an existing backup when you do this. Always create a new backup file.

  1. In the Daily Reports window, print your Daily Report in either Excel or Pdf format by clicking on the Print DDR buttons in the Home ribbon.

You can configure what is included in the DDR by opening the DDR Options ribbon and toggling the options in the Options section. Other reports can be added to the DDR as attachments in the Additional Reports section.

You can create a morning report by clicking on the arrow below the EOWR option and selecting Morning Report Package. The package contains the following:

a. A copy of the database. This is optional and if not required can be omitted via the settings tab in the ribbon.

b. An Excel format EOWR up to the current day.

c. An email template containing a summary of the current status of the well.

The morning report is treated like an EOWR. Its contents can be configured using the options in the EOWR Options ribbon.

  1. At the end of a run you should fill out the Run Data for the BHA. Open the Drill String Editor, select the current BHA and click on the Drilling icon in the Run Data section of the ribbon.

  2. Choose the reason for POOH in the Reason dropdown. Make any general comments on the run in the Comments section, and fill in the Run Data section if necessary.

  3. If there was a tool failure, check the Failed check box. This will activate the other sections where you can record details of the failure. In the Incident Type section select the BHA Component that caused the failure. If the component was a motor, MWD or RSS, check the relevant checkbox as well. Check the Trip for Failure or LIH (Lost in Hole) boxes if necessary. In the comments boxes below, enter relevant details of the failure, and any NPT the failure caused.

  4. Click on Apply and then close the Drilling Data dialog.

  5. If MWD was present in the string, click on the MWD icon in the Run Data section of the ribbon.

  6. In the MWD Run Data window, fill in the Run Information, Tests and Setup sections. If there was an incident with the MWD, check the MWD Incident checkbox. This will enable you to enter details in the other sections. Click Apply to save your changes and then close.

  7. Save your BHA and then create the BHA for the next run by clicking on the Add BHA icon. If required, you can also click on Duplicate BHA, which will create a new BHA and copy over all of the components from the current BHA. Give the new BHA a name and BHA #. Once you have finished filling in the new BHA, you can Save and then close the Drill String Editor.

5.0 - Office – Monitoring Drilling Operations

For monitoring drilling operations from the office, the best option is to use the Innova Portal. The tools introduced in the steps below require the rig site to be pushing data using the Real Time Data Exchange or Data Sync. The EDR also requires the WITS feed from the rig to be pushed to the server.

  1. Open your internet browser and navigate to one of the below websites based on your servers geographic location:

  2. Log in with your username and password.

  1. The Wells List page displays all of the wells in your server database. Filter the Status column to Active to display only the wells currently being drilled. The Wells List page displays some drilling information for each well. If the field is pushing survey/reporting data to the server via the data exchange or data sync, the last time an update was sent is listed in the DEX column. If the field is forwarding WITS data from the rig to the survey, the last time the server received an update is listed in the WITS column.

  2. In the Wells List page, click on your desired well in the Well column to select it. The name of the selected well will appear at the top of the screen, and your browser will move to the Well Details page. Now you can expand the Well Views option on the sidebar menu, which will give you access to detailed information on the well.

The following steps describe some of the more useful Well View pages.

  1. The Daily Reports page allows you to view the daily reports for the well. The bottom half of the page displays a summary for each day, showing drilling progress, cost overview and activity overview. Clicking on the > icon to the left of a day will expand it to display the daily activities in detail. The top half of the page displays the Depth v Days, Phase Footage, Phase Hours and Phase ROP charts. Hover over the left or right hand sides of the charts to display the < and > icons that allow you to cycle between each one.

  1. On the Surveys page, click on the Real Time AC tab to the right of the survey listing to display the real time anti-collision results for the well. This will automatically update every time data is pushed from the rig site.

  2. The EDR (Electronic Data Reader) page allows you to view drilling parameters from the rig site in real time. It also uses the drilling parameters to create a record of the rig state.

  1. The Anti-Collision Dashboard is accessed from the left hand menu and displays all active wells in the database. This allows the user to monitor company wide anticollision in one dashboard. This dashboard is updated in real time any time new data is pushed from the field.

6.0 - Rig Site – End Of Well Steps

Once drilling operations have finished, follow the below steps to QA & QC your reporting data and close out the well.

  1. Finish recording daily data, mud data, personnel and costs for the last day. Make sure that the last BHA has a 6P: Lay Down BHA activity assigned. Save and then close the Daily Reports window.

  2. Save and close your slide sheet.

  3. Save your surveys. Open the Actual Well Properties and check that the survey program is updated down to TD.

  4. Once you have finished prepping your tools for backload, click on the actual well or below in the object explorer, and then click on the Inventory button in the Home ribbon.

In the Tool Inventory, mark tools that are ready for backload by clicking in the Ready for Backload column. When you are finished, click Save and close the window.

  1. Click on the actual well or below in the object explorer, and then click on the Shipping Ticket button in the Home ribbon.

  2. Create a new ticket by clicking on the Add icon in the toolbar. In the Shipping From section, select the rig address from the dropdown box. In the Shipping To section, select the destination address. If these addresses are not available in the dropdown boxes, you can fill them in manually.

  3. Add a comment and then select the tools that you want added to the ticket by clicking in the Select column. If you marked tools as Ready for Backload in the Tool Inventory, you can quickly select them by clicking the Select Ready for Backload button.

  4. Save your shipping ticket and then Print it. Once your tools have been shipped, you can click on the Ship Tools button to automatically mark your tools as off location in the Tool Inventory.

  5. Right click on the actual well and select Reporting >> Daily Activity Editor. The Daily Activity Editor displays all activities for the job in one continuous table, making it easy to check for errors. Any errors that the software has detected will be highlighted in red and listed in the Validate section. You can scroll through the errors using the Prev and Next buttons.

Check for the following:

a. Time Gaps – The start time of every activity should match with the end time of the previous activity.

b. Depth Gaps - The start depth of every activity should match with the end depth of the previous activity.

c. BHAs – Every BHA should have exactly one 6O: Pick Up and one 6P: Lay Down activity. Every row should have the BHA selected while it is in the hole. When no BHA is in the hole, the BHA cell should be blank.

d. Phases – Every row should have a phase selected.

Once you have completed these checks, click on Save and then close the window.

  1. In the object explorer, double click on one of the surveys for the job to open it Then click on Slide Sheet in the Home ribbon.

For each slide sheet in the well, check through your drilling parameters to make sure that there have been no typos or mistakes.

Make sure the RPM is zero for all slide activities where there is no pipe oscillation.

A common mistake is that the drilling parameters get entered with the wrong units. If you are not sure what units you are supposed to be using, open the Settings ribbon in the main interface and click Select in the Unit Sets. The units in this dialog are the units used in the slide sheet.

When you have finished with each slide sheet, save your changes by clicking on the Save icon in the toolbar. When you have finished with every slide sheet, close the slide sheet window.

  1. Once you have finished QC’ing the Daily Report, you should make sure that all of your Run Data is filled in. Click on the actual well in the object explorer, and then click on the Drill String button in the Home ribbon.

Select a BHA and click on the Drilling icon in the Run Data section of the ribbon.

Check the Drilling Data dialog for every BHA in the well. For each BHA check that:

a. A reason for POOH has been selected.

b. Comments have been filled in.

c. If the BHA had a failure, make sure that this has been recorded.

  1. Repeat the process for the MWD run data. When you have finished checking the drilling and MWD run data for each BHA, Save and close the Drill String Editor.

  2. You can now print your End of Well Report. In the Daily Reports window, open the EOWR Options ribbon. Toggle the checkboxes to choose which reports and charts are included in the EOWR.

  3. In the Daily Reports window, return to the Home menu and click on the arrow below the EOWR button. Print the EOWR in your desired format by selecting Print EOWR Excel or Print EOWR pdf.

  4. Right click on the actual well in the object explorer and select External Files. Add any relevant documents, such as the EOWR and the shipping ticket.

  5. Click on the Job Data button in the Daily Reports Home ribbon. Set the well status to TD or whatever your company has designated the Well Status should be once the well has been TD’d and the data has been validated. Click on Apply and close. Save and then close the Daily Reports window.

  6. If you are using Data Sync to send updates to the server, it will have sent the last update when you clicked on Apply in the previous step. However, if you are using the Real Time Data Exchange, you should manually push the last update to the server. In the main Well Seeker interface, click on the Push button in the Home ribbon.

Click on Manual Push. Wait for the message box to say File Transmission Successful and External Files Transmission Complete. You can then stop the data exchange by clicking on the Stop button and closing the window.

NOTE: Pushing your data to the server after changing the status to TD will prevent you from pushing any further changes afterwards.

7.0 - Office – Post-Job Steps

  1. Verify that the bottom line of the actual wellbore matches with the well plan, and that the actual well survey program is complete.

  2. Right click on the actual well and select Reporting >> Daily Activity Editor. The Daily Activity Editor displays all activities for the job in one continuous table, making it easy to check for errors. Any errors that the software has detected will be highlighted in red and listed in the Validate section. You can scroll through the errors using the Prev and Next buttons.

Check for the following:

a. Time Gaps – The start time of every activity should match with the end time of the previous activity.

b. Depth Gaps - The start depth of every activity should match with the end depth of the previous activity.

c. BHAs – Every BHA should have exactly one 6O: Pick Up and one 6P: Lay Down activity. Every row should have the BHA selected while it is in the hole. When no BHA is in the hole, the BHA cell should be blank.

d.Phases – Every row should have a phase selected.

Once you have completed these checks, click on Save and then close the window.

  1. In the object explorer, double click on one of the surveys for the job to open it Then click on Slide Sheet in the Home ribbon.

For each slide sheet in the well, check through your drilling parameters to make sure that there have been no typos or mistakes.

Make sure the RPM is zero for all slide activities where there is no pipe oscillation.

A common mistake is that the drilling parameters get entered with the wrong units. If you are not sure what units you are supposed to be using, open the Settings ribbon in the main interface and click Select in the Unit Sets. The units in this dialog are the units used in the slide sheet.

When you have finished with each slide sheet, save your changes by clicking on the Save icon in the toolbar. When you have finished with every slide sheet, close the slide sheet window.

  1. Once you have finished QC’ing the Daily Report, , you should make sure that all of your BHA performance reports are filled in. Click on the actual well in the object explorer, and then click on the Drill String button in the Home ribbon.

Select a BHA and click on the Drilling icon in the Run Data section of the ribbon.

Check the Drilling Data dialog for every BHA in the well. For each BHA check that:

a. A reason for POOH has been selected.

b. Comments have been filled in.

c. If the BHA had a failure, make sure that this has been recorded.

  1. Repeat the process for the MWD run data. When you have finished checking the drilling and MWD run data for each BHA, Save and close the Drill String Editor.

  2. You can now print your End of Well Report. In the Daily Reports window, open the EOWR Options ribbon. Toggle the checkboxes to choose which reports and charts are included in the EOWR.

  3. After all data QC has been completed, click on the Job Data button in the Daily Reports Home ribbon. Set the well status to Verified or Complete or whatever Well Status your company policy specifies at this point. Click on Apply and close. Save and then close the Daily Reports window.

PreviousUpdating Well Seeker XNextWell Seeker X: Sidetrack Guide

Last updated 18 days ago

Was this helpful?

NOTE: It is best practice to use the same Activity Codes and Phase Codes for every operator in your organisation’s server database. This will make KPI analysis easier. Refer to the following video for more information regarding this:

NOTE: It is best practice to use the same Activity Codes and Phase Codes for every operator in your organisation’s server database. This will make KPI analysis easier. Refer to the following video for more information regarding this:

Select the correct Compass export file to import. You may notice that your object explorer contains slightly different names when imported into Well Seeker, compared to the original Compass file. This is because Well Seeker requires names in the object explorer to be unique, whereas Compass does not. Well Seeker will modify names to avoid conflicts. For more information on the logic behind this process, visit this page:

In the Plan Properties window, input the plan name, vertical section, magnetics and depth reference details. If your plan is a sidetrack, refer to our for tying your well onto its mother bore. Lastly, designate the plan as the principal plan for the well by checking the Set as principal plan checkbox. After checking your inputs, click on Apply and then Close.

In the Actual Wellbore Properties window that appears, input and check the actual well name, vertical section, magnetics and depth reference details. If your well is a sidetrack, refer to our for tying your well onto its mother bore. After checking your inputs, click on Apply and then Close.

For a more detailed explanation of the Data Sync, see the following tech note:

In the Rig States window, the incoming WITS values are displayed in the Current WITS Data section. Adjust the settings in the Thresholds section so that the WITS data is translated into the correct rig state in the Current Rig State section. Refer to the for more details information.

The DD dashboard contains the following sections. For a detailed breakdown of these sections, refer to the :

USA: .

Europe:

UAE:

Click on the icon beside a day to print the report for that day, or click on the icon in the bottom right to print all days in one report.

The Surveys page allows you to view the currently recorded surveys for the well. The top half of the page displays the 3D plot, section and plan view charts for the well. Hover over the left or right hand sides of the charts to display the < and > icons that allow you to cycle between each one. Hover over the icon to change chart settings.

The Drill String page contains details of every BHA created for the well. Clicking on the > icon to the left of each will expand it to display its components. Click on the icon beside a BHA to print a BHA or performance report.

The EDR requires the rig site to be sending WITS data to your organisation’s server database. It also requires a data store to be set up for the well in the Portal. When the DD/MWD first start sending data, the Portal will do this automatically. For a more detailed guide on setting up the data store and configuring the EDR, see the following guide:

Steps 10 - 13 detail how to perform a QA & QC check on the daily reporting in the well. Follow on the below steps. Before starting, it is recommended to back up your database via the Home Tab and selecting Backup in the Database section.

After the rig has pushed their last update to the server, follow the below steps to QA & QC the data and verify that the well is finished. The rig should have already performed some of these steps during their End of Well procedure. Follow on quality control for the reporting data.
