Innova Drilling & Intervention
  • Introduction to Innova Documentation
    • Documentation Updates
  • Promotional Info & Software Overview
    • Feature Updates
      • Well Seeker Pro - BGGM Error Estimate Integration
      • Well Seeker Pro - Superior QC Integration
      • Innova App & Portal - Feature Update
    • Promotional Info
      • Innova App & Web Portal
      • Innova Technical Specification
  • Generic Documents
    • Innova Generic Documents
      • Innova Software Licensing
      • License Renewal
      • Installing Updates
  • Quick Start Guides
    • Well Seeker X Guides
      • Well Seeker X: Transition Guide
      • Well Seeker X: Installation Guide
      • Well Seeker X: How To Guide
      • Well Seeker X: Backing up a WS Db
      • Well Seeker X: Changing Datum Elevations
      • Well Seeker X: Adding an IPM
      • Well Seeker X: Local Login Guide
      • Well Seeker X: Project Ahead Guide
      • Well Seeker X: Survey Correction Integration Guide
      • Updating Well Seeker X
      • Well Seeker X: Job Startup Procedure
      • Well Seeker X: Sidetrack Guide
  • Well Seeker Pro Guides
    • Installation Guide
    • How To Guide
    • Sidetrack Guide
    • Project Ahead Guide
    • Recommended Job Startup Procedure
    • Adding A New CRS
    • Adding an IPM How To Guide
    • Backing Up A Well Seeker Database
    • Changing Datum Elevation
    • Compass Export Files & Db Naming Conventions
    • Compass IPM Issues
    • Downlink Control User Guide
    • Frequently Asked Questions
    • Geomag Model Installation Guide
    • Inclination Only IPM Guidelines
    • Innova Remote Client Setup Guide
    • Oasis Integration Guide
    • Printing A Wall Plot To PDF
    • Remote Client How to Guide
    • Rig States Guide
    • Solo Cloud Integration Guide
    • Survey Correction Integration Guide
    • Toolbars How To Guide
    • Tool Orders User Guide
    • Well Analytics How to Guide
    • WITS Setup & Remote Directional Drilling
    • Tool Rental Run Tracking Guide
    • Certified Survey Reports How To Guide
  • Innova Engineering Guides
    • Installation Guide
    • Hydraulics Module Quick Start Guide
    • Torque & Drag Quick Start Guide
    • Apparent WOB Chart
    • Casing Standoff Quick Start Guide
    • Casing Wear Prediction
    • Cementing How To Guide
    • Drill Pipe Fatigue Plot
    • Hole Cleaning Guide
    • Jar Placement Guide
    • QAQC SCC & MSA
    • SAG Quick Start Guide
  • Remote Database Guides
    • Creating an AWS Database
    • Creating an Azure Database
    • Managing an AWS Database
  • App & Portal Guides
    • Automated Bit Grading Guide
    • Oasis Integration Guide
    • Providing 3rd Party Access to Your Organizations Server Data
    • Web Portal Data Acquisition and EDR Guide
    • Web Portal Engineering Quick Start Guide
    • Web Portal - MFA Guide
  • Innova ICP API Guides
    • Registering an OAuth App on Azure
    • Registering an OAuth App on Okta
  • Manuals
  • Well Seeker Pro Manual
    • 1.0 - System Requirements
    • 2.0 - End User License Agreement
    • 3.0 - Software Overview
    • 4.0 - Getting Started
    • 5.0 - Main User Interface
    • 6.0 - Main Menu
      • 6.1 - File Menu
      • 6.2 – Edit Menu
      • 6.3 - View Menu
      • 6.4 - Tools Menu
      • 6.5 – Reports Menu
      • 6.6 - Plots Menu
      • 6.7 - Chart Properties
      • 6.8 - Context Menu
      • 6.9 - Windows Menu
      • 6.10 - Help Menu
    • 7.0 - Database Navigator
    • 8.0 - Well Seeker PRO Database Structure
    • 9.0 - Survey View
    • 10.0 - Plan View
    • 11.0 - Targets
    • 12.0 - Charts
    • 13.0 - Reporting
      • 13.1 - Activity Codes
      • 13.2 - Cost Codes
      • 13.3 - Phase Codes
      • 13.4– Daily Reporting
      • 13.5 – Drill String Editor
      • 13.6 - Tool Inventory
      • 13.7 – Shipping Addresses
      • 13.8 – Shipping Ticket
      • 13.9 – Pipe Tally
      • 13.10 – Slide Sheet
      • 13.11 – Directional Drilling Dashboard
      • 13.12 – Well Analytics
      • 13.13 – AFE Plan Designer
      • 13.14 – Daily Activity Editor
      • 13.15 – Create Bid Sheet
      • 13.16 – Export Reporting Data
      • 13.17 – Import Reporting Data
      • 13.18 – Transfer Reporting Data
      • 13.19 – In Zone %
      • 13.20 – Recover Slide Sheet from DDR
      • 13.21 – Tool Orders
    • 14.0 - Well Analytics
    • 15.0 - AFE Plan Designer
    • Appendix A – Software Licensing
    • Appendix B - Nomenclature
    • Appendix C - Acknowledgements
    • Appendix D – Error Model Description
    • Appendix E – Drill String Editor Component Properties
    • Appendix F–Slide Sheet Column Options
  • Innova Engineering Manual
    • System Requirements
    • End User License Agreement
    • 1.0 - Software Overview
    • 2.0 - Getting Started
    • 3.0 – Main User interface
    • 4.0 - Menus
    • 5.0 - Toolbars
    • 6.0 – Drill String, Well Geometry and Fluids Tab
    • 7.0 - Surveys Tab
    • 8.0 – Engineering Parameters Tab
    • 9.0 – Drilling Data Tab
    • 10.0 - Cementing Tab
    • 11.0 - Chart Results
    • 12.0 - Table Results
    • Appendix A – Software Licensing
    • Appendix B – Nomenclature
    • Appendix C – Axial and Cross Axial Magnetic Correction
    • Appendix D – Pole Strengths
    • Appendix E – Component Details
  • Innova App Manual
    • 1.0 - Introduction
    • 2.0 - App Installation
    • 3.0 - Logging In
    • 4.0 - Menus
    • 5.0 - Wells
    • 6.0 - Logistics
    • 7.0 - Analytics
    • 8.0 - Innova Admin
    • 9.0 – Well Seeker Admin
    • 10.0 - User Management
    • Appendix A – Setting Up A New User
    • 12 User Management
  • Web Portal Manual
    • 1.0 - Login
    • 3.0 - Main Interface
    • 4.0 - Wells List
    • 5.0 - Object Explorer
    • 6.0 - Well Views
      • 6.1 - Well Details
      • 6.3 - Anti Collision
      • 6.4 - Daily Reports
      • 6.5 - Inventory
      • 6.12 - Engineering Dashboard
    • 7.0 - Multiwell Dashboard
    • 9.0 - Logistics
    • 10.0 - Analytics
    • 11.0 - Database Admin Tools
      • 11.3 - Rig Names
      • 11.7 - Personnel Names
      • 11.9 - Audit Data
    • 13.0 - Error Models
    • 14.0 - Tool Orders
    • 17.0 - Data Acquisition
    • 19.0 - User Management
  • Release Notes
    • Well Seeker Pro Release Notes
    • Innova Engineering Release Notes
  • Video Guides
    • How To Videos
      • Well Seeker Pro
        • Getting Started
          • How to Install WSP
          • WSP Licensing
          • User Interface Overview
          • How to Backup a WSP Database
          • Database Tree Overview
          • Setup Files
          • Entering a Well Plan from a PDF
          • Slot Templates
          • Targets
          • How To Customize Toolbars
          • Depth Reference Change
          • Unit Sets
          • IPM File Management
          • Well Seeker Pro Update Feature
          • WSP - Company Specific Install File
        • Import / Export
          • Importing a Compass Export File
          • Exporting and Importing
        • Plots
          • Introduction to Plots
          • 3D Plot
        • Project Ahead - Multi-Nudge Tool
          • Project Ahead - Multi Nudge Tool
          • Update to Multi-Nudge Dialog
        • Anti-Collision Introduction
        • Tools
          • Geomagnetics Calculator
          • Motor Yield Calculator
          • Interpolate Dialog
          • Innova RSS Remote Client
          • RSS Downlink Control
          • Remote Data Fetch
        • Daily Reporting
          • Daily Reporting
          • Slide Sheets
          • Component Catalogue
          • Daily Activity Editor
          • Check Daily Activity Against Slide Sheet
          • DD Dashboard Introduction
          • WITS Setup
          • MWD Reporting
          • Rig States - Oscillating while Sliding
          • Choosing Phase and Activity Codes
          • Daily Reporting QA & QC
          • Recover Slide Sheet from DDR
        • Wall Plot Composer
        • Innova Remote Client
        • Downlink Control
        • Print Invoice Date Range
        • Reporting an Issue
      • Innova Engineering
        • Getting Started
          • Creating a BHA
          • Installation
          • License Files
          • User Interface Overview
          • Torque & Drag Setup
          • Hydraulics Setup
          • Reports
          • Drilling Data
          • Charts
        • Survey Correction
          • Short Collar Correction (SCC)
          • SAG
        • Engineering Tools
          • Quick Bit Hydraulics
          • Pump Data
          • Mud Calculations
          • Pipe Length Calculator
          • Component Catalogue
          • Interpolate
          • Fluid Library
          • Temperature Gradient
          • Tubular Properties Calculator
        • BHA Analysis
          • BHA Analysis
          • BHA Sensitivity Analysis
        • Casing Standoff
        • Back Calculate Friction Factors
      • Innova App
        • Innova App - Installation and Login
        • Innova App - Wells Page
        • Innova App - Well Data
        • Innova App - Side Menu
        • Innova App - User Management
        • Innova App - Analytics
        • Innova App - Logistics
        • Innova App - Chart Settings
      • Web Portal
        • Web Portal - Login
        • Web Portal - User Management
        • Web Portal - Changing Your Password
        • Web Portal - Analytics
        • Web Portal - Bulk Edit
    • Innova Online Training
      • Well Seeker Pro
        • 01 - Well Seeker Pro Introduction
        • 02 - Well Seeker Pro Database Tree Overview
        • 03 - Well Seeker Pro Database Backup and Export Files
        • 04 - Well Seeker Pro Well Planning Introduction
        • 05 - Well Seeker Pro Introduction to Anti Collision
        • 06 - Well Seeker Pro Directional Drilling Tools
        • 07 - Well Seeker Pro Daily Reporting Job Setup
        • 08 - Well Seeker Pro Daily Reporting Operations
        • 09 - Well Seeker Pro Daily Reporting End of Well
        • 10 - Well Seeker Pro Well Analytics
        • 11 - Well Seeker Pro Chart Properties
        • 12 - Well Seeker Pro Server Db Ops Video Part 1
          • 12 - Db Ops Part 1 - w/ RT Data Exchange
          • 12 - Db Ops Part 1 - w/ Data Synchronization
        • 13 - Well Seeker Pro Server Db Ops Video Part 2
        • 14 - Well Seeker Pro WITS WITSML Functionality
        • 15 - Well Seeker Pro Directional Drilling Dashboard
      • Innova Engineering
        • 01 - Innova Engineering Introduction
        • 02 - Innova Engineering Hydraulics
        • 03 - Innova Engineering Torque and Drag
        • 04 - Innova Engineering Charts & Reports
        • 05 - SCC and Magnetic Interference
        • 06 - SAG Correction
  • Technical Notes
    • High Priority
      • WS 3D Plot Issues
      • Check for Update Function
      • Data Synchronization Feature Update
      • Products & Features and User Permissions Update
      • WS 3D Chart C2C Distance Critical Update
      • Critical update for Anti-Collision in Inc Only Wells
    • Medium Priority
      • Slide Sheet Overwrite Issue
    • Low Priority
      • AC Report vs RTAC Dialog
      • Build Turn Planning Method From Vertical
      • Data Fetch Update
      • EDM Import Function Update
      • Excel Report Printing Error
      • Force Layout Reset
      • Hardware Malfunction casuing WITS related error
      • Inclination Only IPMs Sensitivity to Zero Inclination
      • IPM File Management
      • Large Well Seeker Database
      • Login Credential Management Change
      • Missing MFPlat.DLL Error
      • Missing MFC140U.DLL Error
      • Missing Microsoft Edge Update
      • Missing SQL Driver
      • Offset Selector - C2C Global Scan
      • Remote Data Fetch Icons Missing
      • Remote Data Fetch Procedural Recommendations
      • Sidetrack Reporting
      • Survey Tool BGS integration
      • Target Line Dip Angle Adjusted For Azimuth Changes
      • Third Party Survey Correction Integration
      • Troubleshooting Anti-Collision
      • Update to Multi-Nudge Projection Dialog
      • Up/Down discrepancies with Target Line Changes in 3D Laterals
      • Unit Set File Format Updated
      • Well Seeker X Failure to Open
      • Well Seeker Pro Import Function Update
      • Well Seeker Pro Change to UD LR Logic at low inclination
      • Error Ellipses at Sidetrack Depth – Well Seeker vs Compass Comparison
      • Well Seeker Pro CRS Updated Functionality
      • Well Seeker Pro - Compass EDM Erroneous Grid Convergence
      • Well Seeker Pro - Real Time Data Exchange Update
      • Well Seeker Pro - Slide Sheet Crash in v2.2.1.1
      • Well Seeker Pro - Slide Sheet Update
      • WSP & Innova Portal - Object Validation Feature
      • WSP - Solo Cloud Target Lines Update
      • WSP - Charts & WPC Improvements
      • WS - New Outlook Email Automation Unavailable
      • Well Seeker X: Displays Not Fully Visible
  • Development
    • Innova Cloud Portal (ICP) API
    • Accessing the API for Non-Programmers
Powered by GitBook
On this page
  • Description
  • Cause
  • Solution
  • Option 1 – Separate Motherbore and Sidetrack Reporting
  • Option 2 - Motherbore and Sidetrack Reporting kept together
  • Special Case – Sidetrack without POOH

Was this helpful?

Export as PDF
  1. Technical Notes
  2. Low Priority

Sidetrack Reporting

Recommendations for handling daily reporting continuity when drilling a sidetrack in Well Seeker Pro.

PreviousRemote Data Fetch Procedural RecommendationsNextSurvey Tool BGS integration

Last updated 9 months ago

Was this helpful?

Description

Sometimes while drilling a well, there is a requirement to perform a sidetrack. If daily reporting has been recorded for the motherbore, this can present a dilemma regarding how to handle continuity for the daily reporting of the sidetrack.

Cause

The motherbore and sidetrack are entered as two separate Actual Wells below the Well itself.

Since daily reporting is associated with each Actual Well, when you start drilling the sidetrack, you will need to move across to start using the reporting connected to the sidetrack. When you do this, none of the daily reporting information associated with the motherbore will be present e.g. inventory, personnel, pipe tally etc. Your sidetrack reporting section will effectively be empty.

Solution

There are two ways to handle the transition from motherbore to sidetrack from a reporting perspective. These solutions are detailed below. Which one you choose will depend primarily on company policy.

Option 1 – Separate Motherbore and Sidetrack Reporting

For this option, you would keep the Motherbore and sidetrack reporting separate i.e. you would treat the sidetrack in the same way as you would a new well. There is however information associated with the motherbore that you can use, without having to enter everything again manually. The below steps will guide the user through this process:

  1. You must first create a new actual well for the sidetrack.

  2. In the database tree, right click at actual well level for the Motherbore and select Reporting – Export Reporting Data and save this to your desktop.

  3. In the database tree, right click at actual well level for the Sidetrack and select Reporting – Import Reporting Data and select the file you have just saved to your desktop.

  4. You will now have copied all the reporting data from the motherbore into the sidetrack.

  5. Open the daily reporting dialog for the sidetrack and do the following:

    1. Go to the Drill String Editor and DELETE all the BHA’s associated with the motherbore. Note, that this will also delete the associated slide sheets.

    2. Create a new daily report. This will include all the personnel and Well Data.

      1. If the job number or any of the other details have changed, then go into the Well Data and Personnel dialog for this new report and make the necessary changes.

    3. Delete all the daily reports associated with the motherbore.

    4. You should now only have one daily report left and you can adjust the report number to 1.

    5. Go to the inventory and change the date on location values for all the tools to the appropriate date.

  6. Open the daily reporting dialog for the Motherbore and do the following:

    1. In the inventory, select all the tools as off location and enter the appropriate date in the date off location column. This is important as it will ensure the tools are not showing up for both the motherbore and the sidetrack.

After following the above steps, the user can then start to populate the daily reports while drilling the sidetrack. At the end of the well you will be able to produce a separate End of Well Report for both the motherbore and the sidetrack.

Option 2 - Motherbore and Sidetrack Reporting kept together

For this option, you would keep the motherbore and sidetrack reporting together, so that they are included in the same report. To do this, you will need to transfer all the daily reporting data from the motherbore across to the sidetrack.

In this situation, the motherbore reports would now be referenced under the sidetrack actual well, so when you print any of these reports, they will have the sidetrack details included instead of the motherbore.

The below steps will guide the user through this process:

  1. You must first create a new actual well for the sidetrack.

  2. In the database tree, right click at actual well level for the Motherbore and select Reporting – Transfer Reporting Data

    1. Select the sidetrack from the dialog. It should be the only option available.

  3. You will now have transferred all the daily reporting data from the motherbore to the sidetrack and can now continue where you left off with the reporting.

NOTE: This transfer process moves all the reporting data from the motherbore which means that once complete, there will be NO daily reporting data associated with the motherbore i.e. it will be completely empty. This is important as it means there is no duplicate data in the database which if present would adversely affect the KPI outputs for the well analytics.

Special Case – Sidetrack without POOH

You may encounter a situation where the decision has been made to perform a sidetrack using the BHA that is already in the hole, without pulling back to surface. To handle this correctly in Well Seeker, the user must create a new actual well and also create a new BHA in the software, despite the BHA not changing in real life. This is due to the following reasons:

  • In order to display both the motherbore and the sidetrack on the same plot, the sidetrack must be a separate actual well.

  • The slide sheet cannot record depths that are shallower than the bottom hole depth, so to record your rotating/sliding activity in the sidetrack, you must create a new BHA.

The below steps will guide the user through this process:

  1. You must first create a new actual well for the sidetrack.

  2. Choose Option 1 or Option 2 from the Solution section above to either split your daily reporting between the motherbore and the sidetrack, or transfer all reporting to the sidetrack.

  3. Create a new BHA by copying the BHA currently in the hole. This is required to create a new slide sheet where you can record the sliding and rotating activity for the sidetrack.

    1. Open the Drill String Editor by right clicking on the sidetrack actual well and select Reporting >> Drill String Editor.

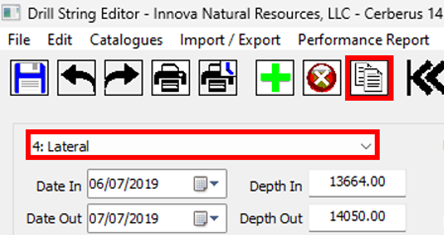

    2. In the Drill String Editor, select the BHA in the hole from the dropdown box, and create a copy of it by clicking on the Copy BHA icon in the toolbar.

    3. Edit the description of the new BHA and update the BHA # and MWD #.

    4. Save and then close the Drill String Editor.

  4. Record the sidetrack in your Daily Activities.

    1. Open the Daily Reports by right clicking on the sidetrack actual well and select Reporting >> Daily Reporting.

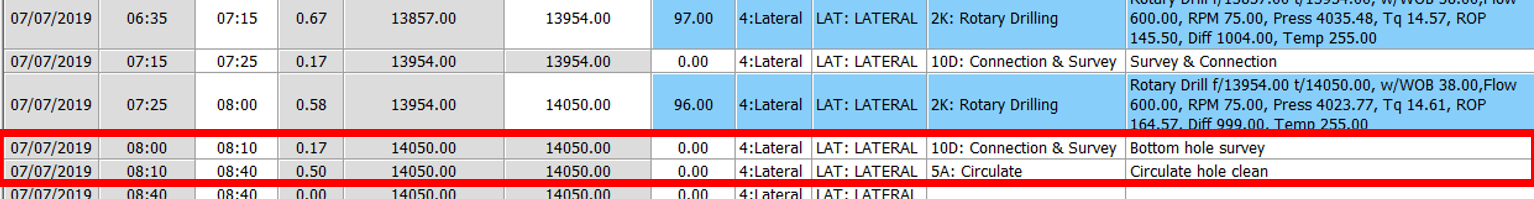

    2. In the Daily Activities section, record any relevant activities (e.g. circulating or reaming) until you are ready to record the sidetrack.

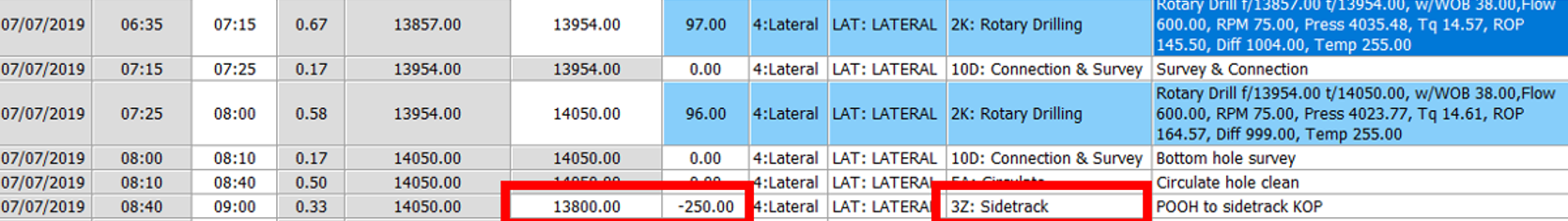

    3. Enter the activity 3Z: Sidetrack. This is a special activity that allows you to set an End Depth that is shallower than the bottom hole depth, and this depth change will not be factored into drilling KPI such as the ROP. You can enter the time here as the time needed to trip back to the kick-off point, or simply set the time to 1 minute if you have already recorded that activity.

    4. If the 3Z activity is not available, you will need to create it in the Activity Codes dialog. In the Daily Reports window open the Tools menu and select Activity Codes. Enter the activity as a new row at the bottom of the table. The Description can be whatever you want, but the Code MUST be 3Z. Toggle the Active checkbox on, save and then close the dialog.

  5. You then need to add the activities for laying down the old BHA and picking up the new BHA, even though the BHA has not actually changed in reality. This is required to signal to the software that it should now refer to the new BHA for actions such as getting drilling activity from the slide sheet, and will allow you to track all sidetrack activities separately for the same BHA.

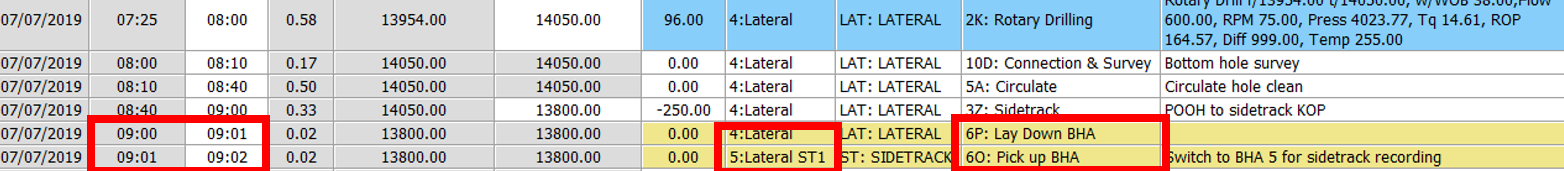

    1. In a new line, enter the activity 6P: Lay Down BHA. Set the End Time to 1 minute after the Start Time. This is the smallest time interval that you can record.

    2. In the next line, enter the activity 6O: Pick Up BHA. In the BHA column, select the new BHA that you created. Set the time interval to 1 minute again. You can keep the phase the same, or begin a new phase if you wish.

  6. You have now set up the sidetrack and can continue recording reporting data. Record the sidetrack surveys under the new actual well, and record the sidetrack slide/rotate activity in the slide sheet for the new BHA.
